- Luminary Efficacy Reaches 130 lm/W, which gives more than 60% of energy saving when compared to HID lamp.

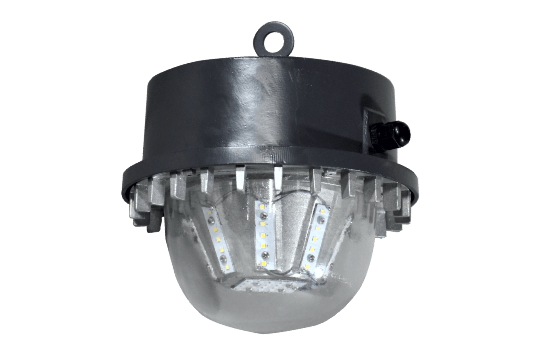

- Patented conical shape Led Light creating outstanding illuminance in industrial lighting applications.
- Specially designed heat sink for faster and effective heat dissipation
- Painted non-corrosive die-cast aluminium housing gives extra strength when the luminaire is installed in a harsh environment.
- Complies with IP 65 ingress protection rating ensuring it is ideal for use in dusty environments and offering stable and consistent performance over product lifetime.
- Dome shape moulded polycarbonate clear cover provide to protection against ingress of dust and water.
- Superior W/m2 Performance delivered optimal lighting effects to fit industrial applications.
- High quality of light by increase CRI upto 80 for all colour temperature.
- World Class, approbated quality components (LED / Driver / etc.)
- Lifetime of over 30, 00 hours at L70, which requires no lamp replacement after installation.
- Low Maintenance cost.
| Family Name | Well Glass |
|---|---|
| Model | PLWW (530) |
| Wattage | 40Watt / 50Watt |
| Lumen / Watt | 130 lm/W |
| Lamp Colour | 2700K, 6500K |
| Colour Rendering Index | >80 |
| Driver | Integrated (Constant current driver) |
| Surge Protection | 10 kV |
| Flex Cable | Yes - 1m |
| Lifetime | 30, 000 hrs |
| Classifications | IP65 |
| Input Voltage | 180 - 270V AC - 50Hz |
| Power Factor | > 0.95 |
| Installation | Ceiling mounting can be done by standard eye bolt. |
| Application | In industries where the area are dusty, power plants, boiler platforms, cement & steel plant, chemical plant |
- In-built integrated electronic LED driver
| Product Code |
Ordering Code |
LED Wattage (W) |
System Wattage (W) |
Rated Voltage (V) |
Mains Current (A) |
Lumens | Approx Weight (Kg) |
Case Lot (Nos.) |
|---|---|---|---|---|---|---|---|---|
| PLWW 530 / 40 | PLWW 530 / 60 / 100 | 36 | 40 | 230 | 0.19 | 4900 | 2.200 | 1 No |
| PLWW 530 / 50 | PLWW 530 / 75 / 100 | 45 | 50 | 230 | 0.24 | 6200 | 2.300 | 1 No |
- Suitable for pendent / ceiling mounted using eye bolt.
